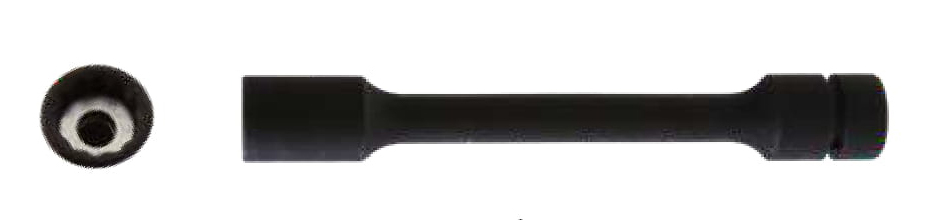

1/2" Extension rod oil pulse tool special air impact socket, 12 Points (Cavity magnetism)
1/2" Extension rod oil pulse tool special air impact socket, 12 Points (Cavity magnetism)

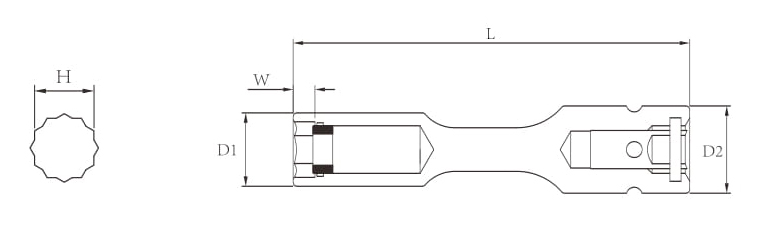

| Item No | H | D1 | D2 | W | L |
|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | |
| 121210008H | 8 | 15 | 25 | 4 | 100 |
| 121210010H | 10 | 17.5 | 25 | 5 | 100 |
| 121210012H | 12 | 20 | 25 | 5.5 | 100 |
| 121210013H | 13 | 21 | 25 | 6 | 100 |
| 121210014H | 14 | 22.5 | 25 | 7.3 | 100 |
| 121210015H | 15 | 22.5 | 25 | 7.3 | 100 |
| 121210016H | 16 | 22.5 | 25 | 7.3 | 100 |
| 121210017H | 17 | 26 | 25 | 9.3 | 100 |
| 121210019H | 19 | 28.5 | 25 | 10.3 | 100 |
| 121210020H | 20 | 30 | 25 | 13 | 100 |
| 121210021H | 21 | 30 | 25 | 13 | 100 |
| 121210023H | 23 | 32 | 25 | 13 | 100 |
| 121210024H | 24 | 34 | 25 | 13 | 100 |
| 121212508H | 8 | 15 | 25 | 4 | 125 |
| 121212510H | 10 | 17.5 | 25 | 5 | 125 |
| 121212512H | 12 | 20 | 25 | 5.5 | 125 |
| 121212513H | 13 | 21 | 25 | 6 | 125 |
| 121212514H | 14 | 22.5 | 25 | 7.3 | 125 |
| 121212515H | 15 | 22.5 | 25 | 7.3 | 125 |
| 121212516H | 16 | 22.5 | 25 | 7.3 | 125 |
| 121212517H | 17 | 26 | 25 | 9.3 | 125 |
| 121212519H | 19 | 28.5 | 25 | 10.3 | 125 |
| 121212520H | 20 | 30 | 25 | 13 | 125 |
| 121212521H | 21 | 30 | 25 | 13 | 125 |
| 121212523H | 23 | 32 | 25 | 13 | 125 |
| 121212524H | 24 | 34 | 25 | 13 | 125 |
| 121215008H | 8 | 15 | 25 | 4 | 150 |
| 121215010H | 10 | 17.5 | 25 | 5 | 150 |
| 121215012H | 12 | 20 | 25 | 5.5 | 150 |
| 121215013H | 13 | 21 | 25 | 6 | 150 |
| 121215014H | 14 | 22.5 | 25 | 7.3 | 150 |
| 121215015H | 15 | 22.5 | 25 | 7.3 | 150 |
| 121215016H | 16 | 22.5 | 25 | 7.3 | 150 |
| 121215017H | 17 | 26 | 25 | 9.3 | 150 |
| 121215019H | 19 | 28.5 | 25 | 10.3 | 150 |
| 121215020H | 20 | 30 | 25 | 13 | 150 |
| 121215021H | 21 | 30 | 25 | 13 | 150 |
| 121215023H | 23 | 32 | 25 | 13 | 150 |
| 121215024H | 24 | 34 | 25 | 13 | 150 |
| 121217508H | 8 | 15 | 25 | 4 | 175 |
| 121217510H | 10 | 17.5 | 25 | 5 | 175 |
| 121217512H | 12 | 20 | 25 | 5.5 | 175 |
| 121217513H | 13 | 21 | 25 | 6 | 175 |
| 121217514H | 14 | 22.5 | 25 | 7.3 | 175 |
| 121217515H | 15 | 22.5 | 25 | 7.3 | 175 |
| 121217516H | 16 | 22.5 | 25 | 7.3 | 175 |
| 121217517H | 17 | 26 | 25 | 9.3 | 175 |
| 121217519H | 19 | 28.5 | 25 | 10.3 | 175 |
| 121217520H | 20 | 30 | 25 | 13 | 175 |
| 121217521H | 21 | 30 | 25 | 13 | 175 |
| 121217523H | 23 | 32 | 25 | 13 | 175 |
| 121217524H | 24 | 34 | 25 | 13 | 175 |
| Item No | H | D1 | D2 | W | L |
|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | |
| 121220008H | 8 | 15 | 25 | 4 | 200 |
| 121220010H | 10 | 17.5 | 25 | 5 | 200 |
| 121220012H | 12 | 20 | 25 | 5.5 | 200 |
| 121220013H | 13 | 21 | 25 | 6 | 200 |
| 121220014H | 14 | 22.5 | 25 | 7.3 | 200 |
| 121220015H | 15 | 22.5 | 25 | 7.3 | 200 |
| 121220016H | 16 | 22.5 | 25 | 7.3 | 200 |
| 121220017H | 17 | 26 | 25 | 9.3 | 200 |
| 121220019H | 19 | 28.5 | 25 | 10.3 | 200 |
| 121220020H | 20 | 30 | 25 | 13 | 200 |
| 121220021H | 21 | 30 | 25 | 13 | 200 |
| 121220023H | 23 | 32 | 25 | 13 | 200 |
| 121220024H | 24 | 34 | 25 | 13 | 200 |
| 121225008H | 8 | 15 | 25 | 4 | 250 |
| 121225010H | 10 | 17.5 | 25 | 5 | 250 |
| 121225012H | 12 | 20 | 25 | 5.5 | 250 |
| 121225013H | 13 | 21 | 25 | 6 | 250 |
| 121225014H | 14 | 22.5 | 25 | 7.3 | 250 |
| 121225015H | 15 | 22.5 | 25 | 7.3 | 250 |
| 121225016H | 16 | 22.5 | 25 | 7.3 | 250 |
| 121225017H | 17 | 26 | 25 | 9.3 | 250 |
| 121225019H | 19 | 28.5 | 25 | 10.3 | 250 |
| 121225020H | 20 | 30 | 25 | 13 | 250 |
| 121225021H | 21 | 30 | 25 | 13 | 250 |
| 121225023H | 23 | 32 | 25 | 13 | 250 |
| 121225024H | 24 | 34 | 25 | 13 | 250 |
| 121230008H | 8 | 15 | 25 | 4 | 300 |
| 121230010H | 10 | 17.5 | 25 | 5 | 300 |
| 121230012H | 12 | 20 | 25 | 5.5 | 300 |
| 121230013H | 13 | 21 | 25 | 6 | 300 |
| 121230014H | 14 | 22.5 | 25 | 7.3 | 300 |
| 121230015H | 15 | 22.5 | 25 | 7.3 | 300 |
| 121230016H | 16 | 22.5 | 25 | 7.3 | 300 |
| 121230017H | 17 | 26 | 25 | 9.3 | 300 |
| 121230019H | 19 | 28.5 | 25 | 10.3 | 300 |
| 121230020H | 20 | 30 | 25 | 13 | 300 |
| 121230021H | 21 | 30 | 25 | 13 | 300 |
| 121230023H | 23 | 32 | 25 | 13 | 300 |
| 121230024H | 24 | 34 | 25 | 13 | 300 |
| 121235008H | 8 | 15 | 25 | 4 | 350 |
| 121235010H | 10 | 17.5 | 25 | 5 | 350 |
| 121235012H | 12 | 20 | 25 | 5.5 | 350 |
| 121235013H | 13 | 21 | 25 | 6 | 350 |
| 121235014H | 14 | 22.5 | 25 | 7.3 | 350 |
| 121235015H | 15 | 22.5 | 25 | 7.3 | 350 |
| 121235016H | 16 | 22.5 | 25 | 7.3 | 350 |
| 121235017H | 17 | 26 | 25 | 9.3 | 350 |
| 121235019H | 19 | 28.5 | 25 | 10.3 | 350 |
| 121235020H | 20 | 30 | 25 | 13 | 350 |
| 121235021H | 21 | 30 | 25 | 13 | 350 |
| 121235023H | 23 | 32 | 25 | 13 | 350 |
| 121235024H | 24 | 34 | 25 | 13 | 350 |
