Model - B-15 (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B15150 No.1 H6.35 50 B-43 V-17W
B15175 75
B151100 100
B15250 No.2 50
B15275 75
B152100 100
B152150 150
B152200 200
B152250 250
B152300 300
B15350 No.3 50
B15375 75
B153100 100

Model - B-35 (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B35150 No.1 φ7 50 B-35 V-17
B35175 75
B351100 100
B351150 150
B35250 No.2 50
B35275 75
B352100 100
B352150 150
B352200 200
B35375 No.3 75
B353100 100
B353150 150
B353200 200

Model - B-35M (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B35M7075 -0.9t×7 φ7 75 B-35 V-17M
B35M70100 100

Model - B-35D (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B350075 No.0 φ 4.0X30 φ 7 75 B-35 V-17
B3500100 100
B350175 No.1 75
B3501100 100
B350275 No.2 75
B3502100 100

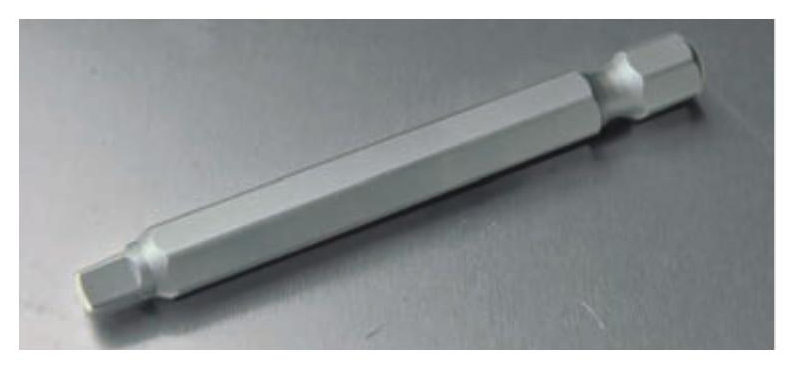

Model - B-35HS (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B35HS175 (SQ1)
3/32"		 H6.35 75
B35HS1100 100
B35HS275 (SQ2)
1/8"		 75
B35HS2100 100
B35HS375 (SQ3)
9/64"		 75
B35HS3100 100

Model - B-35X (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B35X1575 H1.5 φ 3.0X30 φ 7 75 B-35
B35X15100 100
B35X2075 H2 φ 4.0X30 75
B35X20100 100
B35X2575 H2.5 75
B35X25100 100
B35X3075 H3 75
B35X30100 100
B35X4075 H4 75
B35X40100 100
B35X5075 H5 75
B35X50100 100
B35X6075 H6 75
B35X60100 100

Model - B-31 (5mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B31050 No.0 φ 6 50 B-34 V-14
B31070 70
B310100 100
B310120 120
B310150 150
B310200 200
B31150 No.1 50
B31170 70
B311100 100
B311120 120
B311150 150
B311200 200
B311250 250
B311300 300
B31250 No.2 50
B31270 70
B312100 100
B312120 120
B312150 150
B312200 200
B312250 250
B312300 300

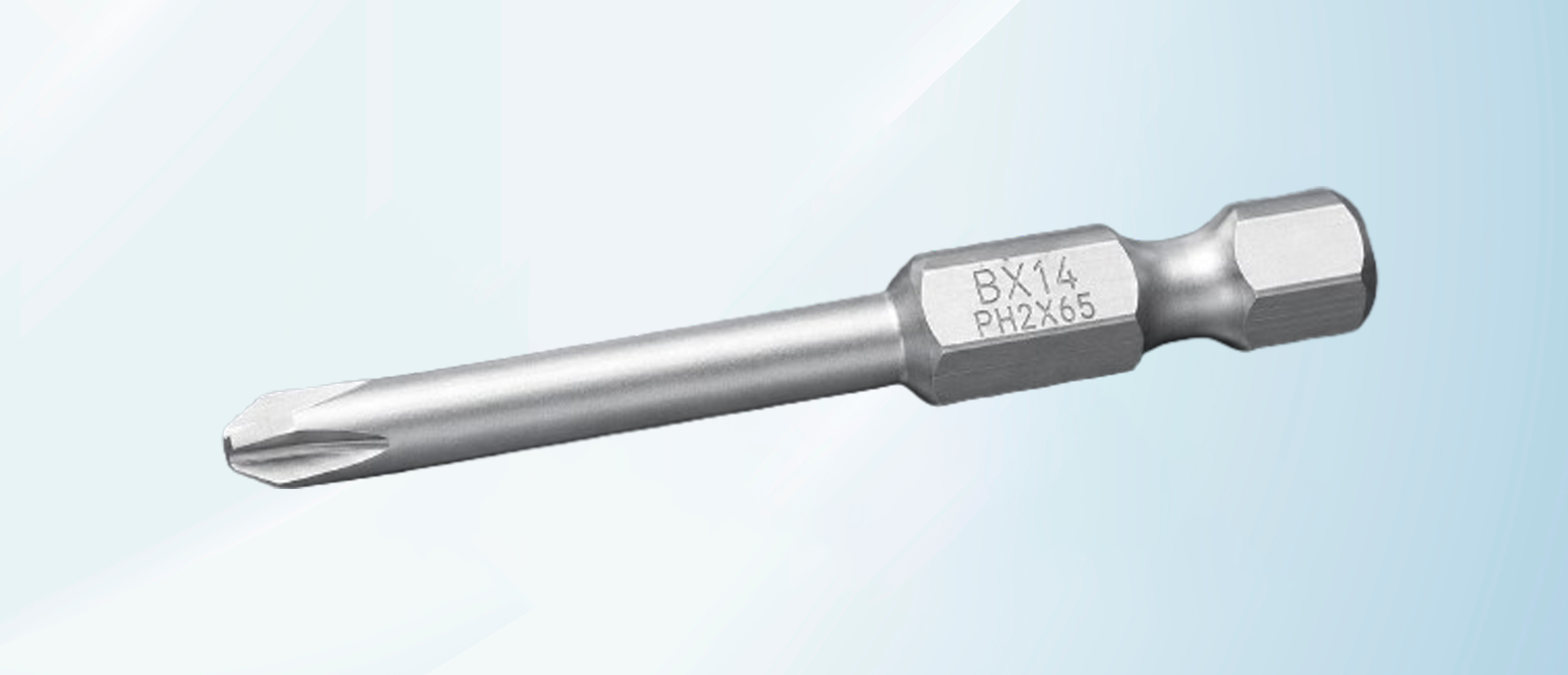

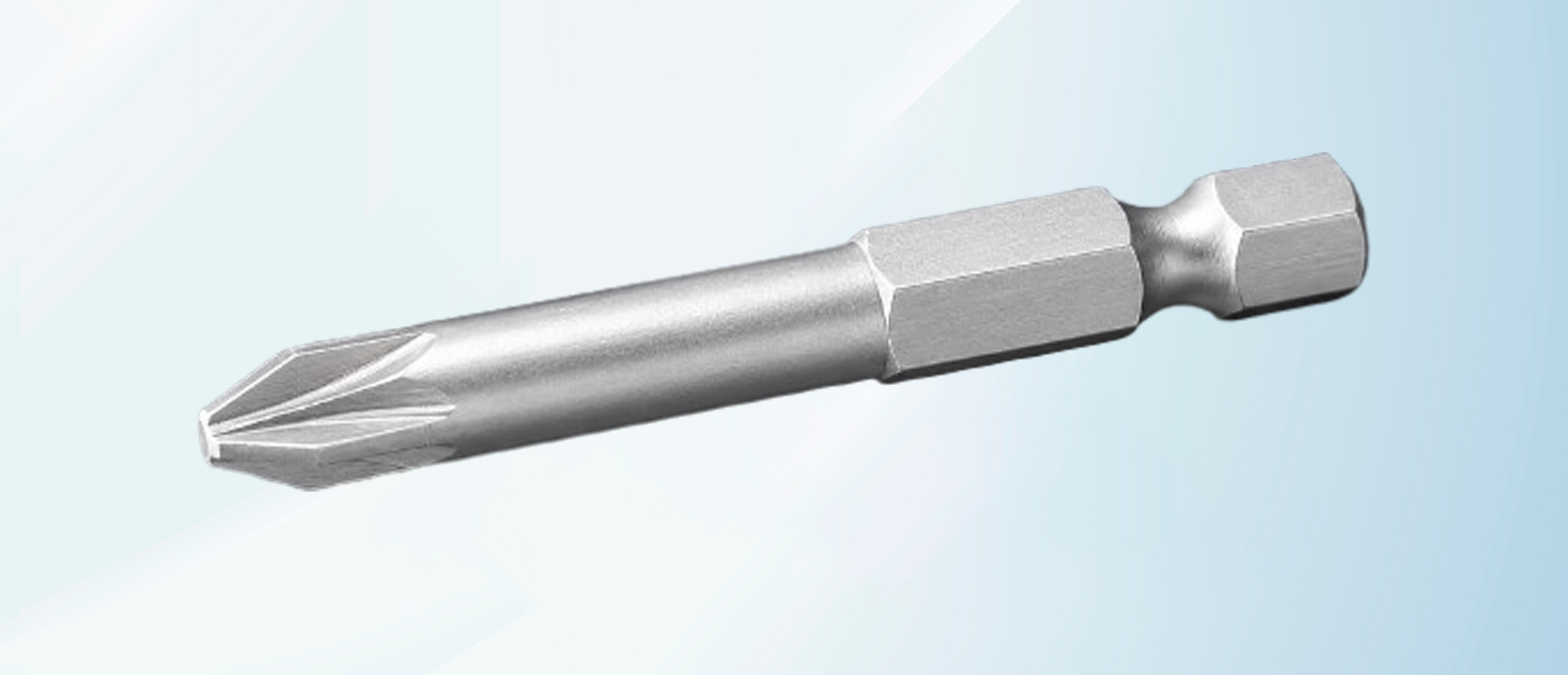

Model - B-35HD (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B35HD050 No.0 φ 3.8X 28 H6.35 50 B-35
B35HD150 No.1 50
B35HD250 No.2 50
35HDPZ14850 PZ1 φ 4.8X 28 50
35HDPZ14870 φ 4.8X 50 70
35HDPZ1 4890 φ 4.8X 70 90
35HDPZ26050 PZ2 φ 6.0X 28 50
35HDPZ26070 φ 6.0X 50 70
35HDPZ26090 φ 6.0X 70 90
35HDPZ36050 PZ3 φ 6.0X 28 50
35HDPZ36070 φ 6.0X 50 70
35HDPZ36090 φ 6.0X 70 90

Model - B-35HDM (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B35HDM3850 -0.6tx3.8 φ 3.8X 28 H6.35 50 B-35
B35HDM6050 -0.8tx6 φ 6.0X 28 50
B35HDM6075 -0.8tx6 φ 6.0X 50 75
B35HDM60100 -0.8tx6 φ 6.0X 70 100

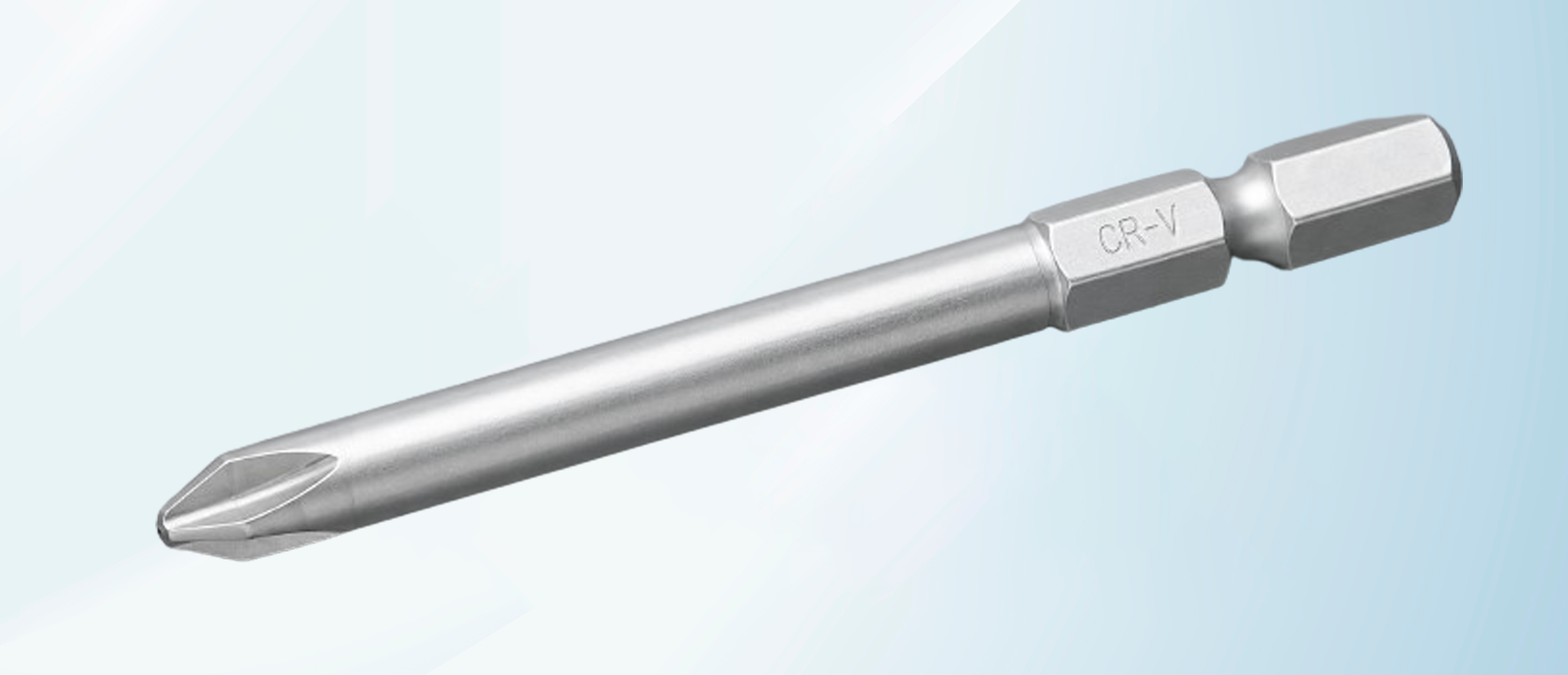

Model - B-39D (6.35mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B39D0750 No.0 φ 3.0X30 H6.35 75 D-81 V-21
B39D1750 No.1
B39D2750 No.2
B39D182 No.1 φ 5.0X35 82
B39D282 No.2
B39D175 No.1 φ 6 75
B39D275 No.2

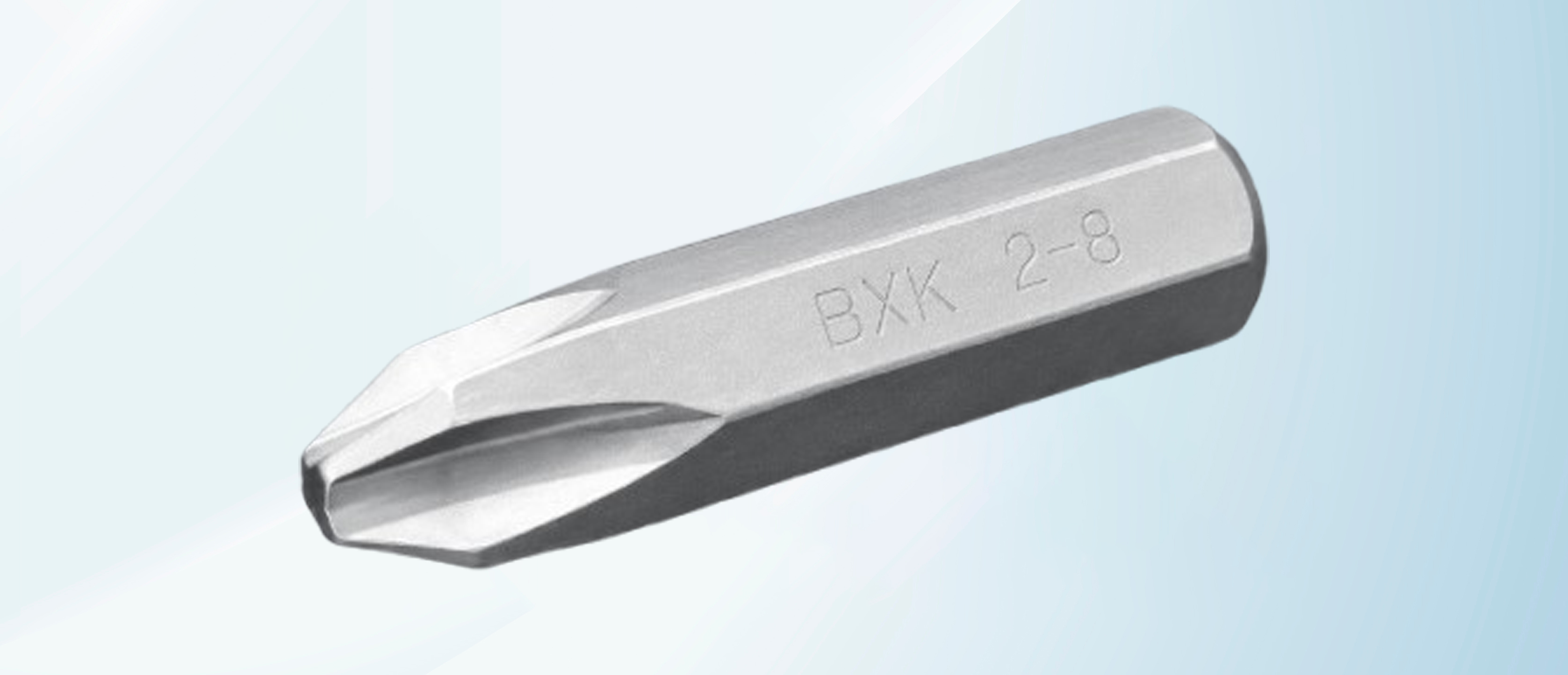

Model - B-51 (8mm)

EDP # POINT SIZE （d × L1） Shank diameter L Equivalent to
Vessel Ohmi
B51236 No.2 H8 36 C-51 V-23
B51280 80
B51336 No.3 36
B51380 80
